Constellation Resources successfully acquired the
Ularring Copper Gold Project in Western Australia in October 2024.
This project presents an exciting opportunity to explore for higher grade copper-gold (Cu-Au) zones at Centre Forest as well as regionally along the targeted shear corridor (24km of strike), where minimal exploration has been undertaken to date.
Historical copper-gold drill results and geology at Ularring indicates a highly prospective intrusion related Cu-Au system, a system style that has the potential to generate large scale deposits.
The region is already known for hosting several major deposits that are intrusion related, such as the Boddington Copper-Gold mine and Caravel Minerals Caravel Copper Project (a porphyry hosted Cu-Mo-Ag-Au deposit).
Separately, the region is host to the recently discovered Julimar Project owned by Chalice Mining Ltd.

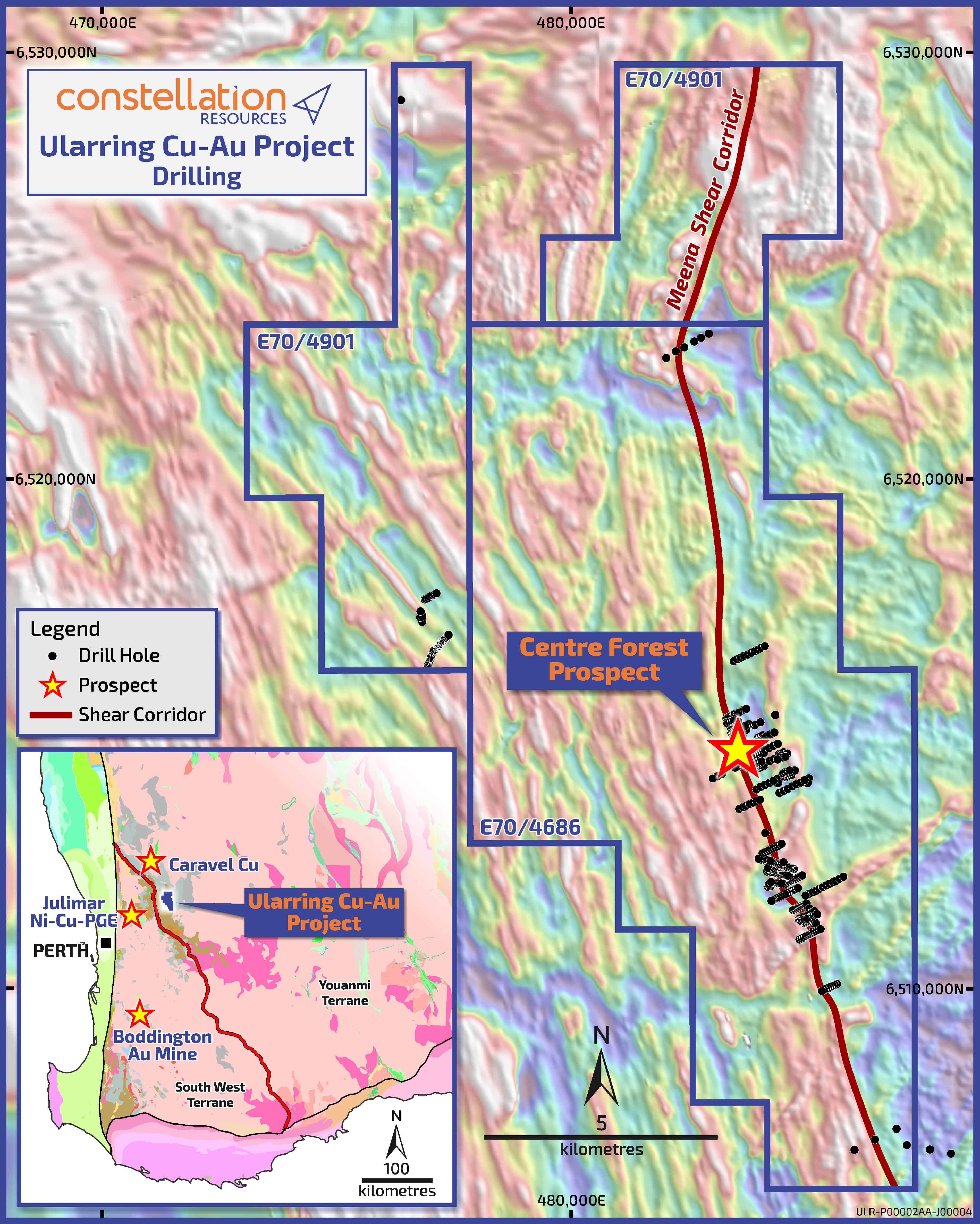

A well-developed Cu-Au horizon has been identified at the Centre Forest Prospect, and this is interpreted to be hosted within a prospective regional shear corridor that follows the margins of an interpreted intrusion.
Centre Forest Prospect
• Broad, Cu-Au zone confirmed in drilling with 1.1km strike, true thickness up to 35m wide and open.
• Centre Forest drillhole results from surface oxides (saprolite) include:
o CFR004 19m @ 2.02g/t Au, 0.16% Cu from 16m to EOH
o CFC001 37m @ 0.73g/t Au, 0.26% Cu, from 21m
o CFC003 35m @ 0.64g/t Au, 0.16% Cu from 16m
o UAC001 30m @ 0.94g/t Au, 0.1% Cu from 0m
o UAC007* 12m @ 0.8g/t Au, 0.01% Cu from 0m to EOH
o UAC008* 61m @ 0.82g/t Au, 0.15% Cu from 0m to EOH
* Drilled down dip of mineralised trend
Centre Forest Prospect unweathered ‘fresh’ drillhole results include:
o CFC002 17m @ 1.1g/t Au, 0.21% Cu, from 84m
o CFC006 20m @ 0.55g/t Au, 0.13% Cu from 80m
o CFC010 7m @ 0.61g/t Au, 0.26% Cu from 67m
o BUDD0003 20.35m @ 0.53g/t Au, 0.17% Cu from 338.45m to EOH
Regional Targets (Outside Centre Forest)
Historic pre 2012 exploration results sourced from open reports have identified several promising Cu-Au-Bi-Mo-W soil anomalies and other prospective targets that require further investigation.
